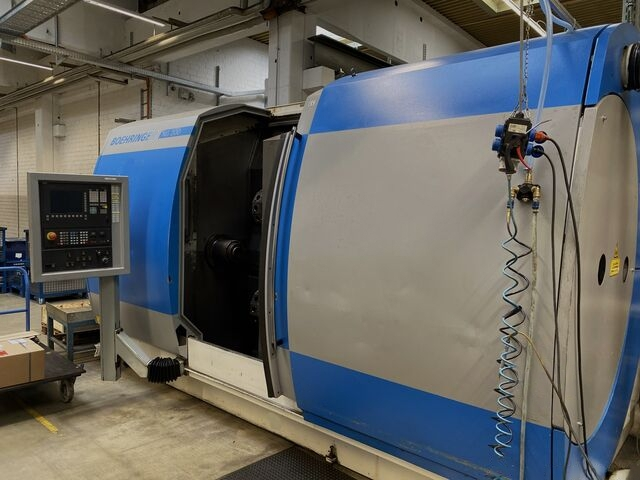

Universal CNC Lathe BOEHRINGER NG 200
Manufacturer [manufacturer] BOEHRINGER
Type [type] NG200 CNC double
Control unit [control unit] Siemens 840D
year of construction [construction year] 10/2001
turning diameter 290 mm
turning length 850 mm
control unit SIEMENS 840 D
Swing diameter over bed 600 mm
turret 1
turret 2
counter spindle
Counter headstock
Driven tools
Automatic machine doors - newly retrofitted
Z-axis resolution 40nm (2nm interpolated)
Travel in Z 740mm
Rapid traverse speed in Z 25 m/min
Center point SK 30
X-axis resolution 125nm (8nm interpolated)
travel in Z 220mm
rapid traverse speed in Z 25 m/min
distance between main and counter spindle 1034mm
drive power 30-72 kW
torque 662 Nm
max. speed range 4500 rpm
Spindle head [spindle head] size 6/8 DIN 55026
spindle diameter in front bearing [spindle] 120 mm
chuck diameter 200-315mm
spindle bore 103 mm
tailstock quill mount MK MK 4
machine weight approx. [weight] 11 t
needed space ] 6,0x2,3x2,5 m
Complete documentation is available.
Viewing under power can take place at short notice.
For further questions we are at your disposal.
Price, ex stock here plus VAT.
Condition good - ready for demonstration
Delivery ex stock - as viewed
Payment net - after receipt of invoice
Subject to prior sale, errors excepted.
