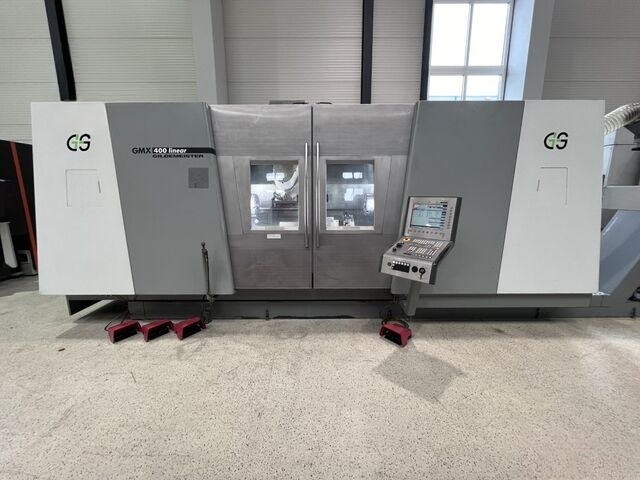

Buy Used CNC Turn-Mill from Gildemeister of year - 2008, Model - GMX 400 linear

SKU : 2406152

I am a dealer

Subscribe for similar machines

Control System Siemens 840D - Powerline
Turning Specifications
Turning Diameter 640 mm
Turning Length 1500 mm
Speed 4,000 RPM
Power 45 kW
Torque 750 Nm
Bar Capacity 90 mm
Workpiece Clamping 3-Jaw chuck, Röhm KFD-HS 315/3
Movement Specifications
Movement in Z-Axis 1500 mm
Tool Carrier I (X/Y/Z/B)
Technology Milling spindle on compound slide
Speed 12,000 RPM
Power 22 kW
Torque 100 Nm
Swivel Range +/- 120°
Movement in X/Y/Z 550/220/1585 mm
Tool Carrier II (X/Z)
Technology Turret with 12 stations
Tool Drive 4,000 RPM, 10.7 kW, 32 Nm
Movement in X/Z 225/1400 mm
Tool Magazine
Type Shelf magazine
Capacity 120 stations
Position Sensing
Position Sensoring Direct scales in all linear axes
Chip and Cooling Management
Chip Management Chip conveyor
Cooling Management Internal cooling unit with paper belt filter, temperature control, and high-pressure (80 bar)
Oil Mist Separation Electrostatic extraction
Additional Accessories
Spindle Chiller
Rinsing Pistol
