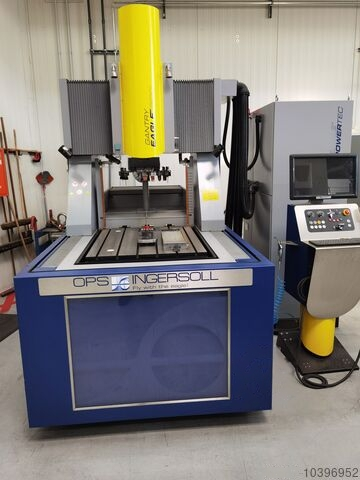

Buy Used EDM -Wirecut from Ingersoll of year - 2017, Model - Gantry EAGLE 800

SKU : 2306350

I am a dealer

Subscribe for similar machines

Refurbished
year of manufacture 2017
EAGLE Powertec PC/NC control 3060
22" screen with touch screen operation
MultiProg Powertec technology programming on PC/NC
Powertec Easy Burn quick programming
Powertec Handheld multifunctional manual control unit
Manual EDM with Powertec Handheld
EAGLE Powertec - Fine finishing generator PT 60, 60 Ampere
High Speed Jump max. 18.000 mm / min.
Travels (X, Y, Z) 550 x 850 x 450 mm
Distance table / electrode chuck min. 135 mm / max. 585 mm
Electrode changer 20-fold pick-up Plate magazine
Work tank (W x D x H) 800 x 1,100 x 480 mm
Work table (W x D) 760 x 1,000 mm
Load capacity 2,000 kg
head load 200 kg
Machine dimensions W x D x H 1,436 x 2,940 x 2,730 mm
Integrated cartridge filter system
Accessories
CO2 fire extinguishing system incl. fire protection flap
Electrode clamping system EROWA ITS
ECOTEC energy saving function Standby mode for Gantry Eagle
Multiprog Powertec technology programming on CD for external programming station
