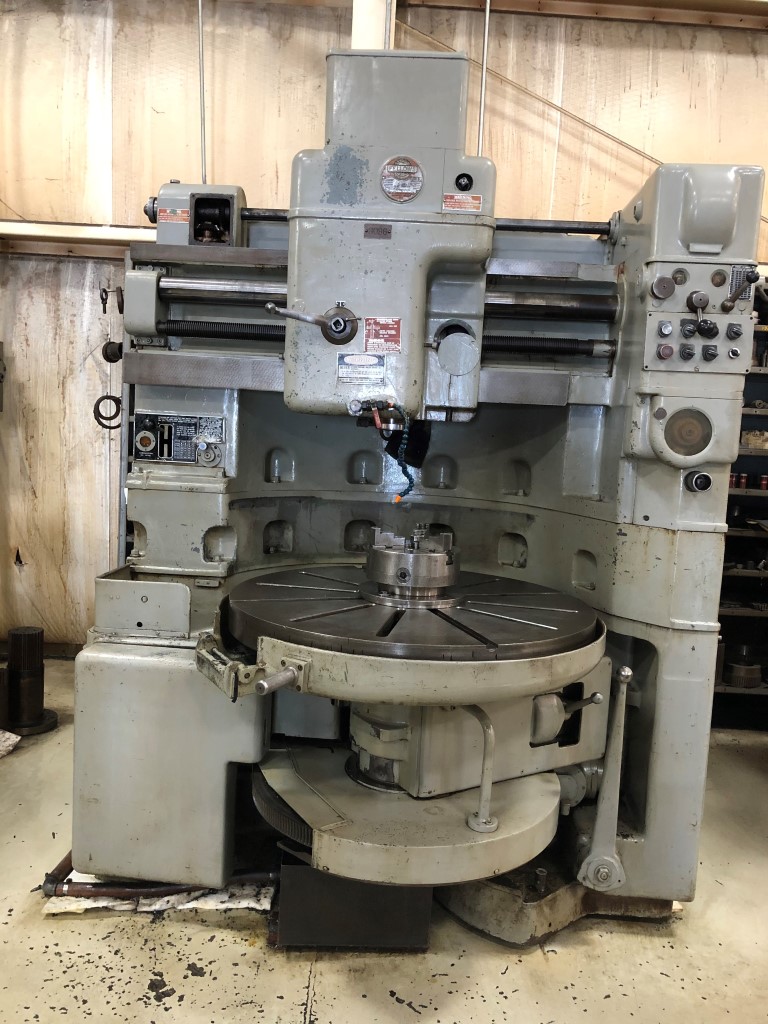

Buy Used Gear Shaper from Fellows, Model - 36 - 6 Vertical Gear Shaper

SKU : 2205212

I am a dealer

Subscribe for similar machines

Pitch Diameter 6" face-width & 3DP
Main Motor (standard straight spur guide) 7-1/2 HP / 1800 RPM
Diameter hollow cutter spindle 4"
Riser 10 1/2"
Main motor 7 1/2 HP
Standard straight spur guide 1800 rpm
Diam hollow cutter spindle 4"
External & Internal max pitch 36"
Max face width 6"
Max workpiece & fixture diam. 40"
Max distance, center line of cutter spindle and work spindle for externals 21 1/2"
Max distance, center line of cutter spindle and work spindle for internals 13 3/4"
Max work & fixture clearance height w/cutter ram in uppermost position 18 3/4"
12 stroking speeds w/ranges 18 to 300 SPM
Lenght 92"
Width 60"
Height 90"
Total Weight 16000
Suitable for the manufacture of internal and external spur gears up to 36"
Rapid rotation of work spindle - assorted change gears
Work sub table
Self contained coolant system. pump & piping
Full complement of electrics ( motor/controls)
Presently arranged for 220/440/3/60
With saddle backed off
