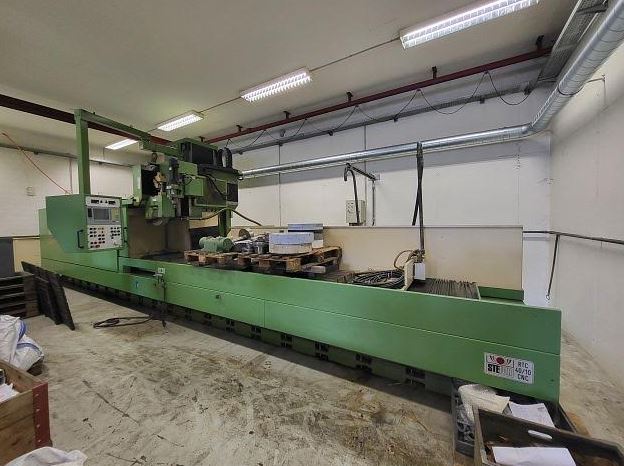

Buy Used Surface Grinder from Stefor of year - 1991, Model - RTC 40/10 CNC

SKU : 2306235

I am a dealer

Subscribe for similar machines

CONTROLS
.. CNC controls SIDIC
WORKING RANGE SURFACE GRINDING
.. grinding length 4000 mm
.. grinding width 1000 mm
TABLE (SURFACE GRINDING)
.. magnetic table yes
MAGNETIC TABLE
.. length 800 mm
.. width 500 mm
.. height 60 mm
GRINDING TOOL
.. type of grinding tool wheel
.. diameter (max) 500 mm
ELECTRICAL SPECIFICATIONS
.. mains voltage 400 V
.. mains frequency 50 Hz
DIMENSIONS / WEIGHTS
B9ezlmgpy7
.. space requirements -left/right- 10500 mm
.. space requirements -front/back- 2600 mm
.. total height 3500 mm
.. total weight approx. 25200 kg
ATTACHMENTS (GRINDING)
.. Flange of grinding wheel no
Equipment
- There are 4 magnetic plates (each 800x500x80mm) distributed on the table length
- Belt filter
