This machine not available

Universal Machining Center

Buy Used Universal Machining Center from Dmg Mori of year - 2014, Model - DMF 260 7

SKU : 2403105
Used Dmg Mori Universal Machining Center 2014 DMF 260  7

CONTACT SELLER

+91

Machine overview

Machine Specifications

  • Controller Heidenhain
  • X Travel 2600 mm
  • Y Travel 700 mm
  • Z Travel 700 mm

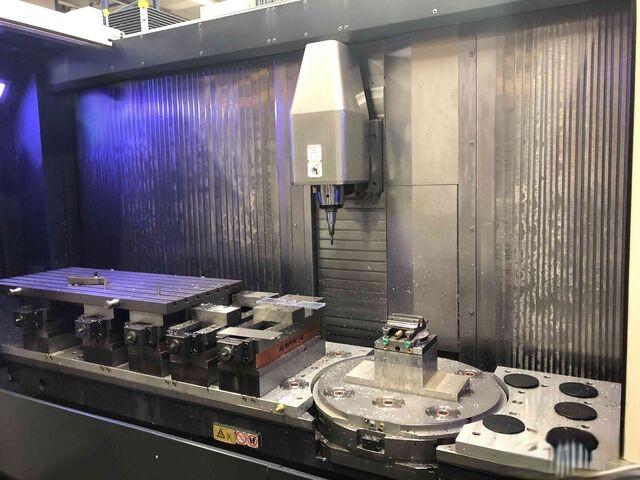

Machine Description

  • Travel X 2,600 x Y 700mm z 700mm
  • Motor spindle 10,000 rpm. SK40 with power 46/30 kW with torque 200/130 Nm,
  • Chain magazine 120 SK40 magazine positions
  • Swivel head, B-axis
  • Table size 2,900 x 700mm with integrated rotary table Ø750mm right
  • Chip tray with integrated coolant tank 500l
  • Heidenhain TNC 530
  • IKZ 40 bar/23 1/min through spindle center (AD)
  • Full cabin with automatic doors and 2 Rotorclear
  • Cooling device blast air through spindle center, selectable via M-function
  • Infrared PP60 optical measuring probe
  • Blum laser measurement in the work area
  • Electronic handwheel
  • Tropical package up to 50° ambient temperature and active cooling unit for the spindle, sealing air and temperature-controlled hydraulic unit
  • Operating mode 4
  • Safety glass panes
  • Preparation 3d Quickset
  • MPC Mashine Protection Control
  • Oil and emulsion separator
  • Right-hand cabin door opening for processing long workpieces
  • New spindle in the 4th quarter of 2023
  • only a few hours 23833 operating hours
