This machine not available

Vertical Machining Center ( VMC )

Buy Used Vertical Machining Center ( VMC ) from Dmg Mori of year - 2008, Model - DMC 635 V

SKU : 2404256

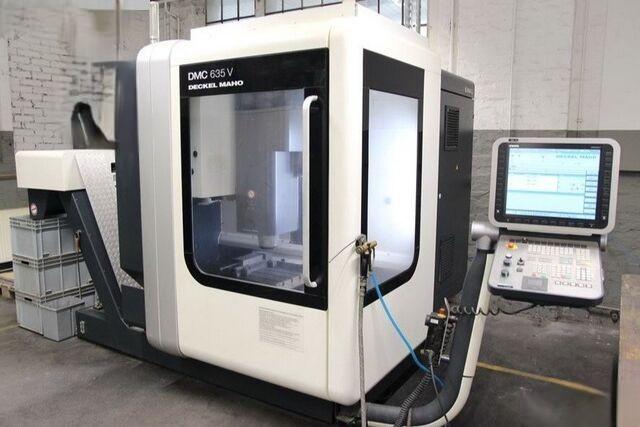

Used Dmg Mori Vertical Machining Center ( VMC ) 2008 DMC 635 V

CONTACT SELLER

+91

Machine overview

Machine Specifications

  • Controller Siemens
  • X Travel 635 mm
  • Y Travel 510 mm
  • No of Axis 3

Machine Description

  • x-travel 635 mm
  • y-travel 510 mm
  • z-travel 460 mm
  • control 840 D sl ShopMill Siemens
  • Main spindle
  • turning speed range - main spindle 20 - 10.000 min/-1
  • power capacity - main spindel 13 / 9 kW
  • tool taper SK 40
  • max. Torque 83 / 57 Nm
  • tension force 8 kN
  • work table
  • table surface area 790 x 560 mm
  • number of T-slots 4 + 1
  • T-slot - distance 100 mm
  • T-slot - width 4x 14H12 / 1x 14H7 mm
  • max. table load 600 kg
  • table height over floor 720 mm
  • distance spindle nose and table 120 - 580 mm
  • number of toolpositions 20 pos.
  • Max. mould width 80 / (130) mm
  • max. tool length 250 mm
  • max. tool weight 6 kg
  • max. total weight 80 kg
  • change-time tool to tool 1,6 sec
  • change-time chip to chip 6,0 sec
  • rapid traverse 30 m/min
  • feed speeds max. 30.000 mm/min
  • Feed force max. 5 kN
  • total power requirement 23 kVA
  • weight of the machine ca. 4,5 t
  • dimensions of the machine ca. 3,5 x 4,0 x 2,7 m
  • Automatic Tool Changer
  • elektr. hand wheel
  • Chip conveyor
  • Signal lamp - 4 colour
  • Spray gun
  • CNC - MachiningCenter Vertical
  • DMG MORI - DMC 635 V
  • Spindle-hrs ca. 4.600h
  • WITHOUT Vice
