Home
Metal Cutting
VTL
Famar
ERGO 500
This machine not available
VTL

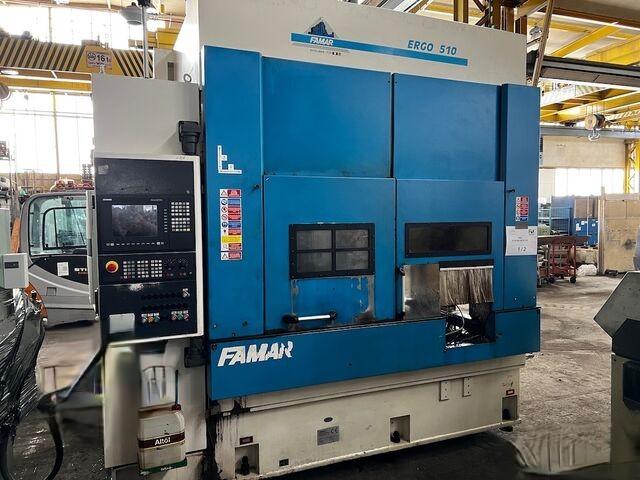

Buy Used VTL from Famar of year - 2001, Model - ERGO 500
SKU : 2402830
CONTACT SELLER
+91
Hello, Your machine Famar - VTL listed on Zatpatmachines.com. I am interested in buying it. I'm looking forward to your offer. Kind regards
I am a dealer
Subscribe for similar machines
SEND REQUEST
Privacy Statement
Machine
overview
Type
VTL
Category
Metal Cutting
Brand
Famar
Year
2001
Condition
Used
Location
Germany
Machine
Specifications
Controller
Siemens
Diameter
500 mm
Swing
660 mm
Machine
Description
CNC vertical lathe
FAMAR ERGO 500
CNC control SIEMENS SINUMERIK 840D
Working area
Standard chuck diameter [mm] 500
Max chuck diameter [mm] 630
Nominal turning diameter [mm] 450
Max turning diameter [mm] 660
Max swivel diameter [mm] 660
Max rotation length [mm] 300
Axis drive
Total stroke X-axis [mm] 1180
X-axis working stroke [mm] 370
Total stroke Z-axis [mm] 400
X-axis speed [m/min] 50
Z-axis speed [m/min] 45
X-axis ball screw diameter [mm] 50
Z-axis ball screw diameter [mm] 50
X-axis feed force [kN] 7
Z-axis feed force [kN] 9.4
S3-25% X-axis feed [kN] 22.2
S3-25% Z-axis feed [kN] 25.1
Spindle nose [ASA] 11
Front bearing ø [mm] 170
Rated power [kW] 28.8
Nominal torque [Nm] 550
Maximum power [kW] 36
Max torque [Nm] 783
Maximum speed [rpm] 3200
Driven by turret Turret
Serrage outils [VDI] 50
Tool quantity [N°] 12
Maximum power [kW] 22.4
Max torque [Nm] 145
Maximum speed [rpm] 8000/10000
Max tool length [mm] 220
Tool change time [sec] 0.25
MACHINE DATA
Loading/unloading time [sec] 6 - 10
Machine weight [kg] 16000 Approx
Main connection [V/Hz] 400/50 or 440/60
Air pressure [bar] 5
Delivery height [mm] 1050
Length/width/height [mm] (without chip conveyor) 3200/2450/3150
