CNC Press Brake

Buy Used CNC Press Brake from EHT of year - 2001, Model - ECOPRESS 175-30

SKU : 2310714

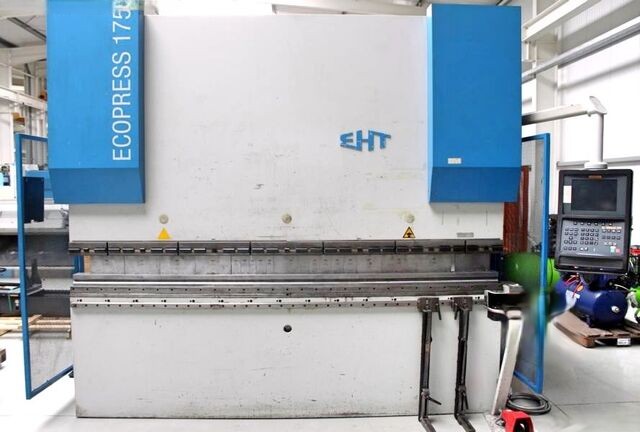

Used EHT CNC Press Brake 2001 ECOPRESS 175-30

CONTACT SELLER

+91

Machine overview

Machine Specifications

  • Force 175 Ton
  • Width 3050 mm

Machine Description

  • pressure 175 t
  • chamfer length 3050 mm
  • distance between columns 2550 mm
  • daylight 560 mm
  • stroke 240 mm
  • adjustment speed 120 mm/sec
  • working feed 10,0 mm/sec
  • return speed 150 mm/sec
  • column arm 300 mm
  • work height max. 1050 mm
  • connected load 15,0 kW
  • oil volume 300 ltr.
  • weight 15000 kg
  • range L-W-H 4250 x 2400 x 2900 mm
  • - electro-hydraulic CNC press brake
  • - CYBELEC - CNC control mod. DNC 1200 HP/8
  • * Swivel control panel, front right
  • * Tool and product library
  • * 2D graphical representation of the products
  • * including external screen + keyboard
  • - CNC controlled electric back gauge (X axis)
  • - CNC controlled height adjustment from the back gauge (R axis)
  • * 6x manually adjustable + foldable stop fingers
  • - CNC controlled table crowning (electro-mechanical)
  • - CNC controlled, pneumatic die adjustment (I axis)
  • - pneumatic upper tool clamping
  • - manual lower tool clamping
  • - 2x robust + adjustable front support arms
  • - 1x set of EHT jack holders including folding tool
  • - 1x set of EHT split deer foot upper tool
  • - 1x Multi V matrix block - reversible
  • - 1x machine rack - self-made
  • - rear protective device (door + protective grille)
  • - side protection device (doors)
  • - freely movable two-hand/foot control
