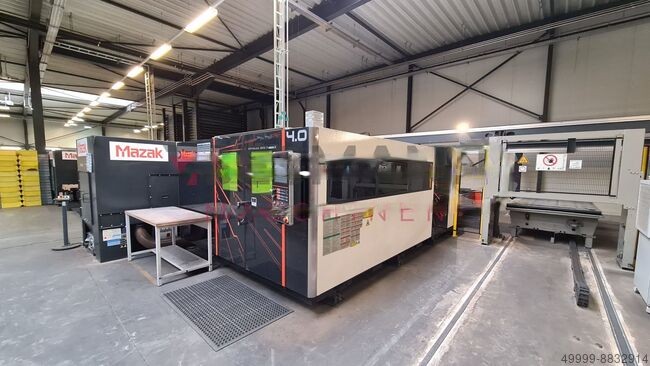

Mazak Optiplex 3015 Fiber 4KW Laser Cutting Machine
Manufacturer Yamazaki Mazak Corporation
Type Optiplex Nexus 3015 Fiber 4KW
Year of manufacture 05/2016
Condition used, very good, under power
Availability from May 2023
Operating hours
Time CNC AN 29.999h
Time Laser AN 15.653h
Time automatic operation 11.839h
Cutting time 28.708h
Total cutting time 6.665h
CNC control MAZATROL PREVIEW 3
Weight 15000 kg
Travel 3.100mm x 1.580mm x 110mm
Power requirement 54 kVA.
GENERAL MACHINE OPTIONS
1 set of adjustment tools
Support grid (distance between the bars 100mm)
Automatic calibration device
Non-contact height sensing with repeat function
Nozzle cleaning brush
Focus position adjustment
Manual workpiece clamping
Machine feet / leveling shoes
Machine status indicator light
NC monitoring for protective gas pressure
without resonator
Programming function at the control via fixed programs
Collecting container for material rejects
6981NO612 Cutting board layer recognition
transformer for the European market
additional selector switch for cutting gas
CUTTING HEADS
Multi-Control cutting head
Lens for Multi-Control cutting head
Cassette for focus lens Multi-Control cutting head
Protection Window for Multi-Control cutting head 5 pieces
Mazak Hi-Acc Pencil Nozzle(Sgl)1.0,3.0Mm 5 pieces each
Mazak Hi-Acc Pointed Nozzle(S)1.2,1.5,2mm 5 pieces each
Mazak Precision Nozzle Adapters (8 pieces)
AUXILIARY GAS LINES
3. auxiliary gas line (30 bar)
Mazak standard paint
PROTECTIVE ENCLOSURE
Laser protection screen (5 pieces)
SAFETY DEVICE
Work area lighting
machine with CE mark
preparation for dust collector
FACTORY AUTOMATION
Automatic switch-off via circuit breaker tripping The power supply is switched off at the end of a program.
PALLET CHANGER
2-fold pallet changer. The next workpiece can be prepared during machining.
NUMERICAL CONTROL
15″ Xga Color Tft Monitor
LAN interface
Mazatrol Preview 3 control
NC repeat function
