This machine not available

Waterjet Cutting Machine

Buy Used Waterjet Cutting Machine from WJS of year - 2005, Model - NC 4060 D6

SKU : 2305614

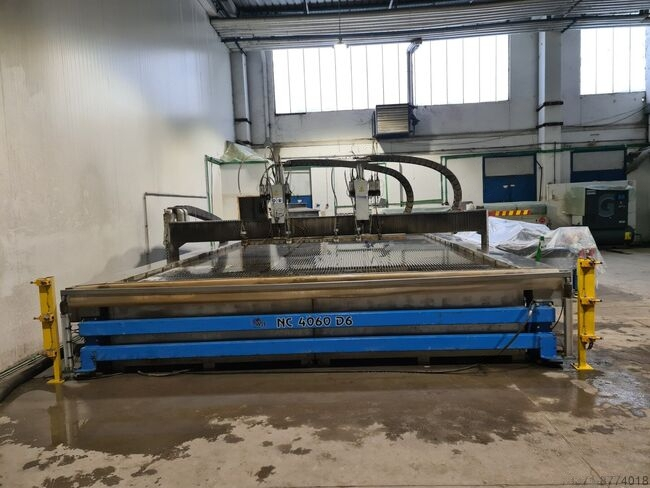

Used WJS Waterjet Cutting Machine 2005 NC 4060 D6

CONTACT SELLER

+91

Machine overview

Machine Specifications

  • Controller Fanuc
  • X Travel 2750 mm
  • Y Travel 6470 mm

Machine Description

  • - NC 4060 D(duplex with 6 cutting heads for abrasive cutting)
  • - 1 x cutting table 4200 x 6700mm
  • - X axis movement 2750 mm
  • - Y axis movement 6470 mm
  • - Z axis movement(hight) 250 mm
  • - Positional accuracy, (X/Y) +/- 0.075 mm/m
  • - Repetition accuracy, (X/Y) +/- 0.05 mm
  • - Feed rate in X 10000 mm / min
  • - Feed rate in Y 10000 mm / min
  • - Feed rate in Z 4000 mm / min
  • -1 x Fanuc GE 300 i (NANO CNC SYSTEM)
  • - 1 x MPG unit
  • - 6 x WJS standard cutting heads mounted on brackets (2 x 3 pcs)
  • - 6 x SM 3000 Abrasive Blend Dispenser
  • - 1 x IGEMS Standard or Professional
  • - 1 x documentation
  • - 2 x abrasive vessel with tower 1500lit
  • - 1 x de -sludge system, 3 x membram pumps
  • - 1 x container 1500lit
  • - 1 x cascade tank
  • - 1 x new cutting tank-stainless steel (4x6,7m)
  • - 10 m HP pipes with connections
  • - 1 x HP KMT pump, 100 HP 4100 bar, with only 9500 working hours
  • Elekt. connection 3 x 400 V+N+PE, 25 A, 50 Hz
  • Air connection 600 l/min
  • Air pressure(technisch getrocknet) 6.5 bar
